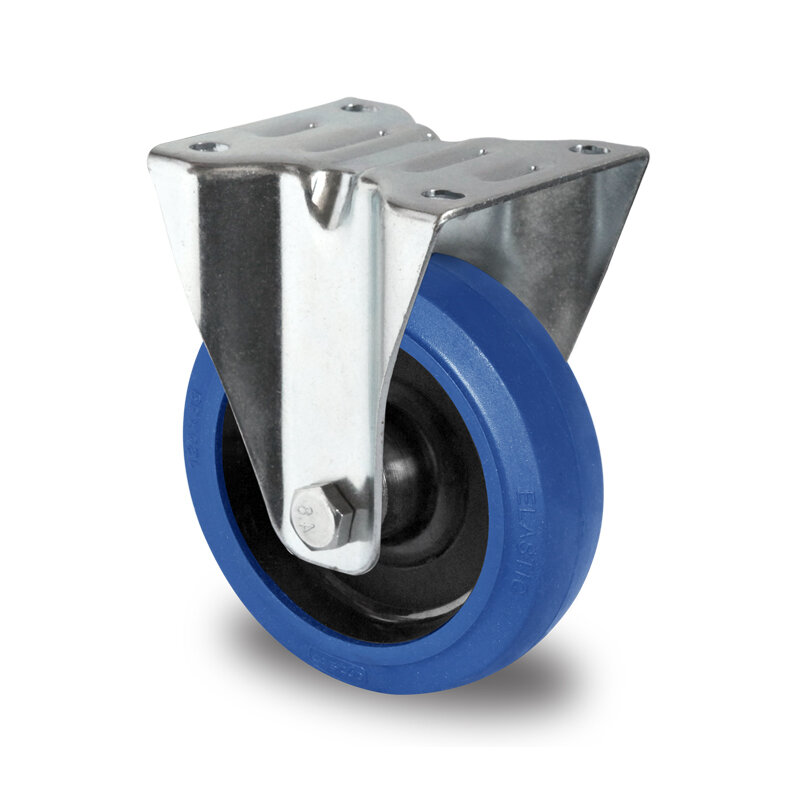

fixed castor, ° 100 mm

system number: FBP22WC100P2W2R1W
  • galvanized sheet steel housing, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.0 mm (fitting) and 2.0 mm (fork), clearance between the fork 42 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (85 ░ Shore A) grey colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C░ to +60C░

Technical specifications

payload
100 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
125 mm
Wheel width
32 mm
bearing surface
thermoplastic rubber 85░ Shore A grey
Wheel center
polypropylene grey
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
