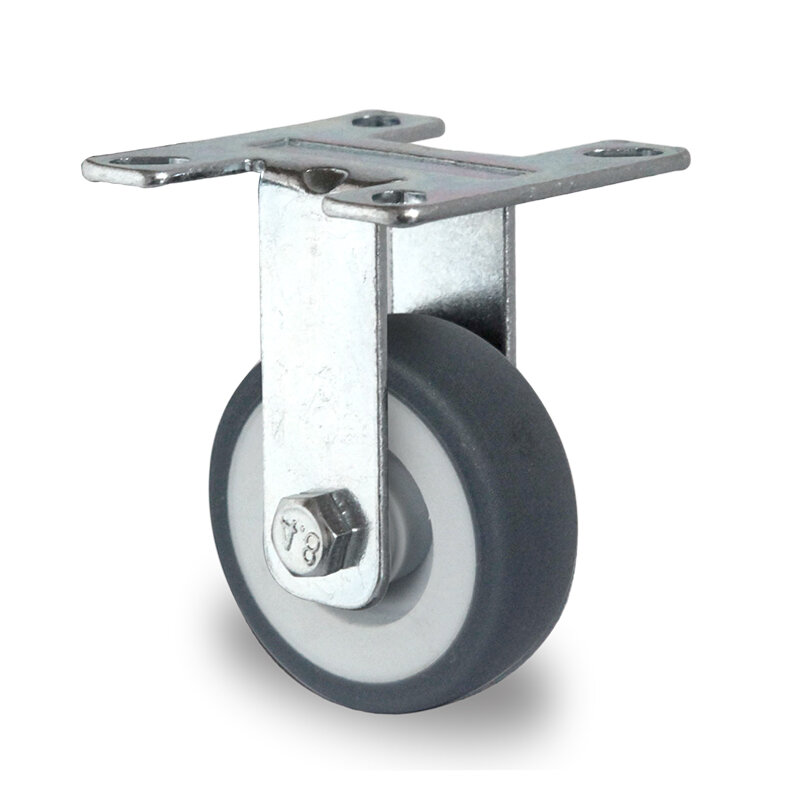

fixed castor, ° 50 mm

system number: FAPBCCC050P2T2P0N
  • galvanized and blue passivated sheet steel housing, screwing by plate with hole pattern 44/38.5 x 44/38.5 mm, housing with material strength 1.5 mm (fitting) and 1.5 mm (fork), clearance between the fork 22 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (95 ░ Shore A) grey colored, hub width 22 mm, plain bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C░ to +60C░

Technical specifications

payload
50 Kg
wheel diameter
50 mm
fastening
plate 55 x 55 mm
hole pattern
44/38,5 x 44/38,5 mm
total height
70 mm
Wheel width
19 mm
bearing surface
thermoplastic rubber 95░ Shore A grey
Wheel center
polypropylene grey
hub width
22 mm
bearing
plain bearing
Axle screw
6 mm
