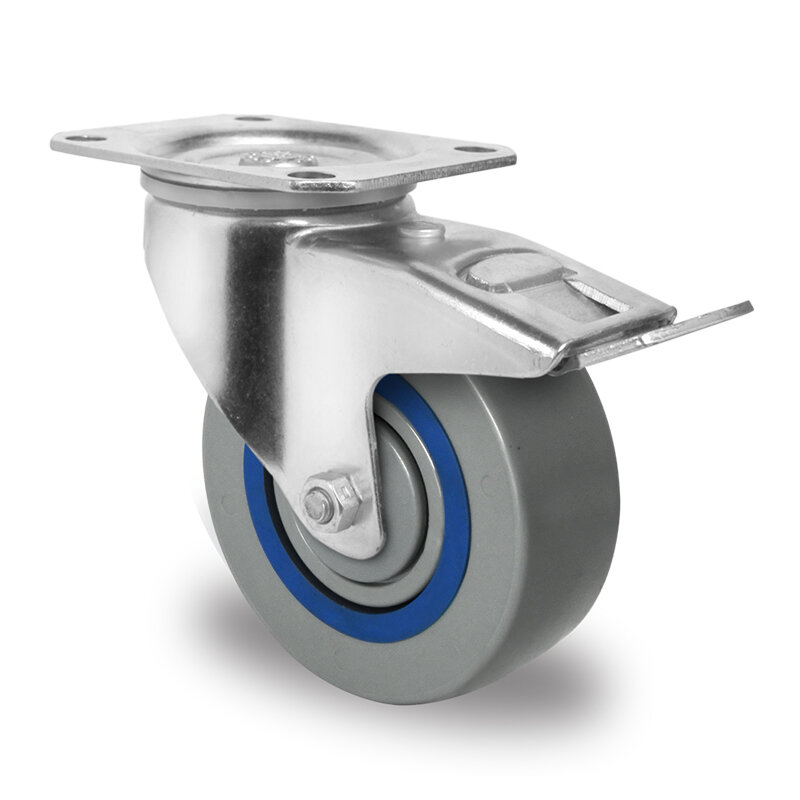

swivel castor, 100 mm with total brake

system number: TPP21WC100M1N2B32
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 3.0 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of a nylon core and inserted and dampening elastic ring with a tread made of nylon grey colored, hub width 40 mm, central ball bearing, screwed wheel axle (incl. all axle material).
hard-wearing material
unbreakable
high load capacity
high chemical resistance to many liquids
temperature range from -20C to +80C

Technical specifications

payload
160 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
128 mm
Wheel width
36 mm
bearing surface
polyamide grey
Wheel center
polyamide with Elastic Ring blue
hub width
40 mm
bearing
ball bearing
Axle screw
8 mm
