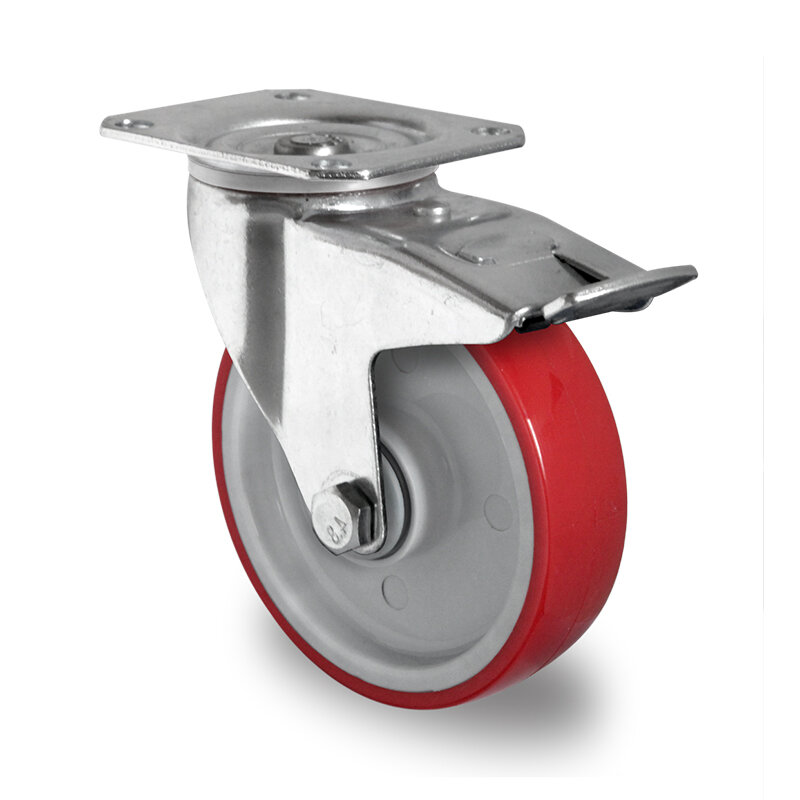

swivel castor, ø 100 mm with total brake

system number: TPP21WC100N2U6B32
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 3.0 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of nylon with a tread made of robust polyurethane red colored, hub width 40 mm, central ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
resistance to many chemicals
quietly
high load capacity
temperature range from -40C° to +80C°

Technical specifications

payload
150 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
128 mm
Wheel width
32 mm
bearing surface
thermoplastic polyurethane 95° Shore A red
Wheel center
polyamide grey
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
