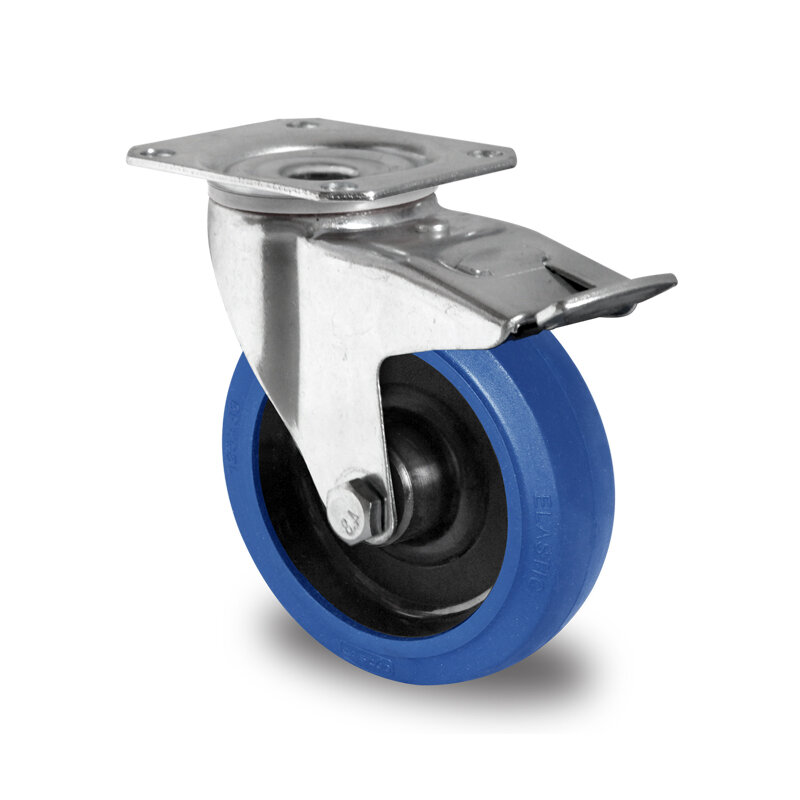

swivel castor, ø 100 mm with total brake

system number: TBP25WC100R4F1R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 75° Shore A) blue colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C° to +80C°

Technical specifications

payload
160 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
125 mm
Wheel width
35 mm
bearing surface
high quality blue elastic 75° Shore A
Wheel center
polyamide black
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
