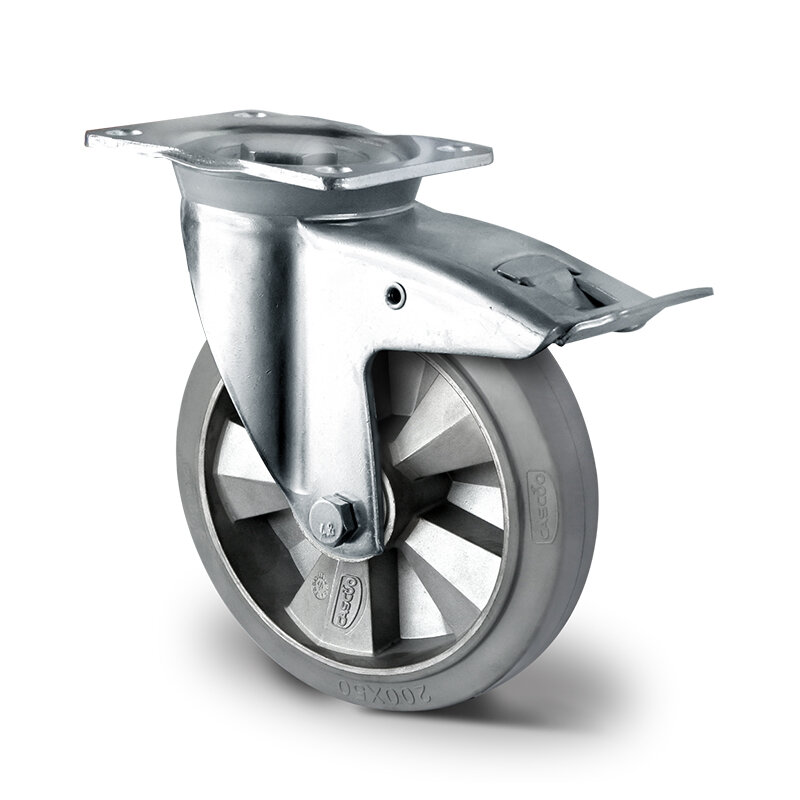

swivel castor, 125 mm with total brake

system number: THP57WC125BAF2D0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 4.0 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of aluminium with a tread made of vulcanized elastic tyre (approx. 70 - 75 Shore A) grey colored, hub width 40 mm, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground, quietly
low start resistance
low roll resistance
high load capacity
temperature range from -20C to +80C

Technical specifications

payload
300 Kg
wheel diameter
125 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
164 mm
Wheel width
50 mm
bearing surface
high quality grey elastic 70 Shore A
Wheel center
aluminium
hub width
60 mm
bearing
double ball bearing
Axle screw
12 mm
