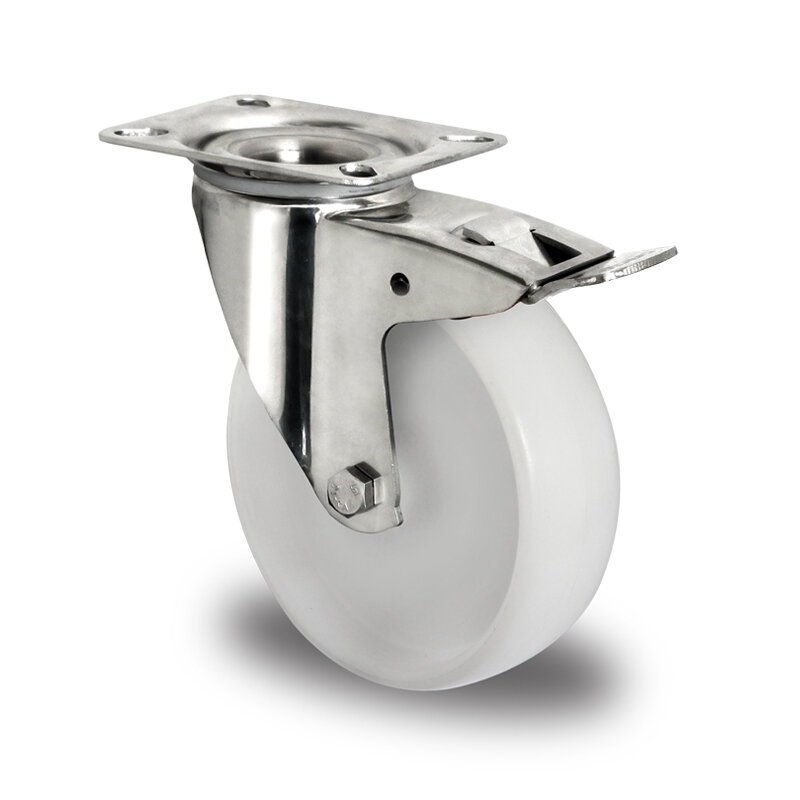

swivel castor, ° 125 mm with total brake

system number: TIP36SC125N0N0L0N
  • stainless steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.5 mm (fitting) and 2.0 mm (fork), clearance between the fork 52 mm, wheel rim made of nylon with a tread made of nylon white colored, hub width 50 mm, plain bearing in stainless steel, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -40C░ to +80C░

Technical specifications

payload
200 Kg
wheel diameter
125 mm
fastening
plate 96 x 80 mm
hole pattern
80/77 x 60 mm
total height
155 mm
Wheel width
32 mm
bearing surface
polyamide white
Wheel center
polyamide white
hub width
50 mm
bearing
plain bearing in stainless steel
Axle screw
8 mm
