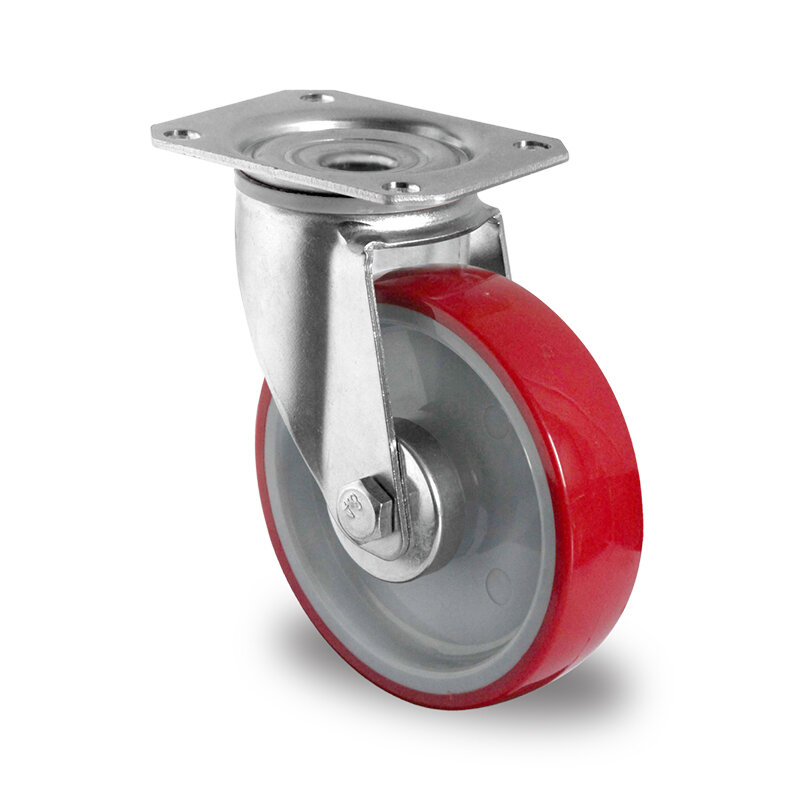

swivel castor, ° 125 mm

system number: SAPJ5CC125P2T2P0N
  • galvanized and blue passivated sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 75 x 50 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 36 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (95 ░ Shore A) grey colored, hub width 36 mm, plain bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C░ to +60C░

Technical specifications

payload
100 Kg
wheel diameter
125 mm
fastening
plate 95 x 70 mm
hole pattern
75 x 50 mm
total height
160 mm
Wheel width
32 mm
bearing surface
thermoplastic rubber 95░ Shore A grey
Wheel center
polypropylene grey
hub width
36 mm
bearing
plain bearing
Axle screw
8 mm
