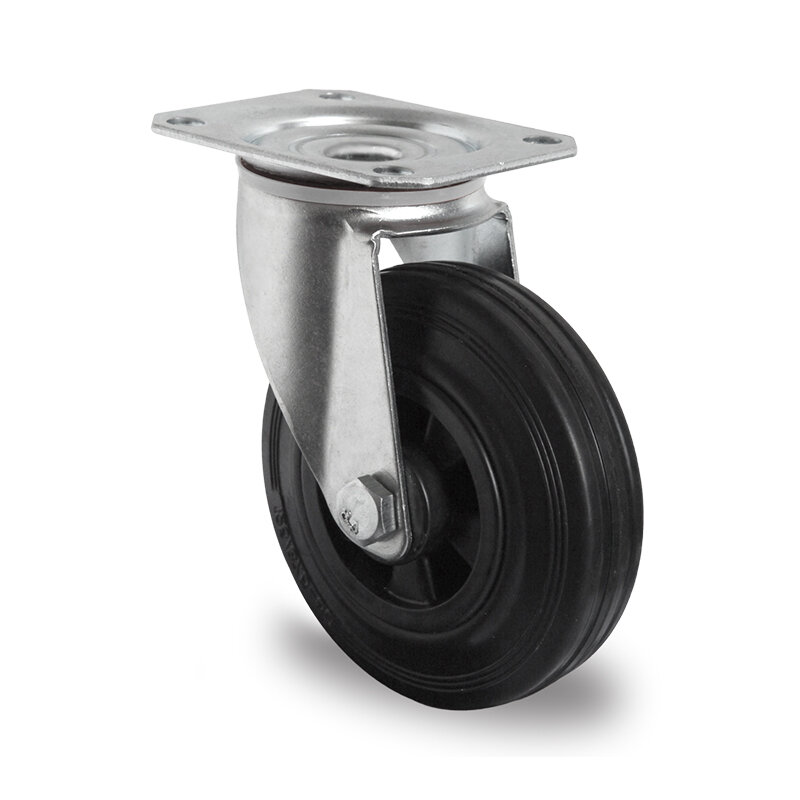

swivel castor, ø 125 mm

system number: SBP35WC125P4S4R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 52 mm, wheel rim made of polypropylene with a tread made of solid rubber (REACH-conform) black colored, hub width 50 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
quietly
low roll resistance
temperature range from -20C° to +60C°

Technical specifications

payload
100 Kg
wheel diameter
125 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
155 mm
Wheel width
38 mm
bearing surface
solid black rubber 85° Shore A
Wheel center
polypropylene black
hub width
50 mm
bearing
roller bearing
Axle screw
10 mm
