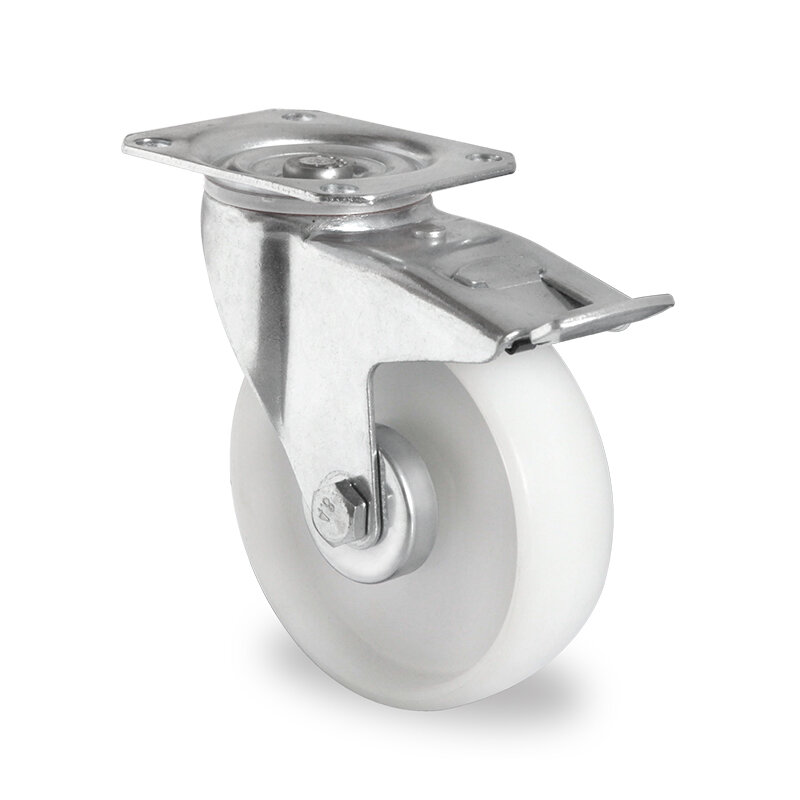

swivel castor, ° 160 mm with total brake

system number: TPP58WC160P0P0R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of polypropylene with a tread made of polypropylene white colored, hub width 59 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
low-priced alternative
temperature range from -20C░ to +60C░

Technical specifications

payload
250 Kg
wheel diameter
160 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
195 mm
Wheel width
50 mm
bearing surface
polypropylene white
Wheel center
polypropylene white
hub width
59 mm
bearing
roller bearing
Axle screw
12 mm
