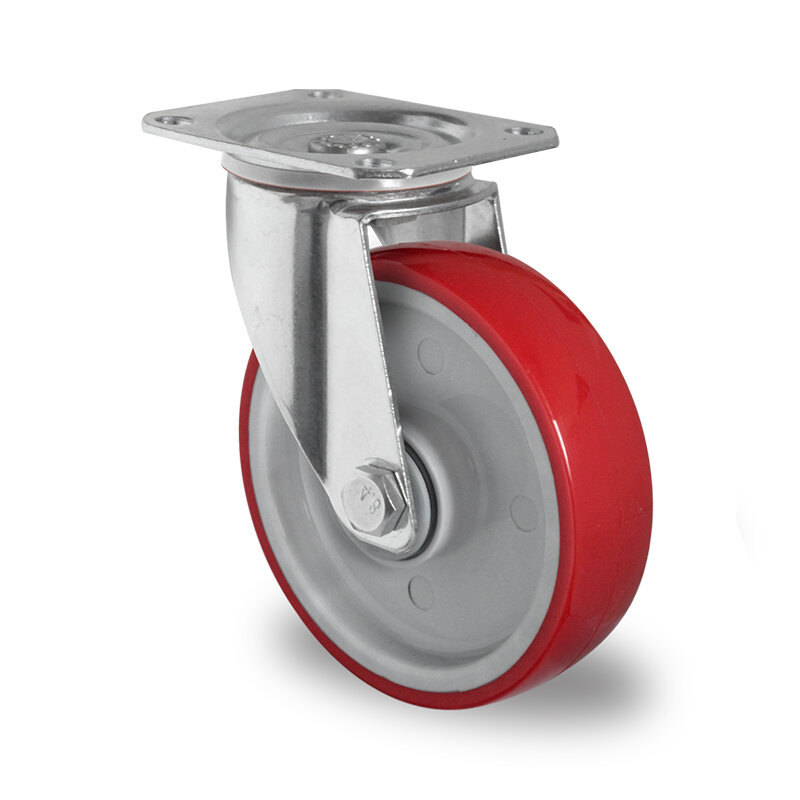

swivel castor, ø 160 mm

system number: SPP57WC160N2U6B32
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 4.0 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of nylon with a tread made of robust polyurethane red colored, hub width 59 mm, central ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
resistance to many chemicals
quietly
high load capacity
temperature range from -40C° to +80C°

Technical specifications

payload
300 Kg
wheel diameter
160 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
195 mm
Wheel width
46 mm
bearing surface
thermoplastic polyurethane 95° Shore A red
Wheel center
polyamide grey
hub width
59 mm
bearing
ball bearing
Axle screw
12 mm
