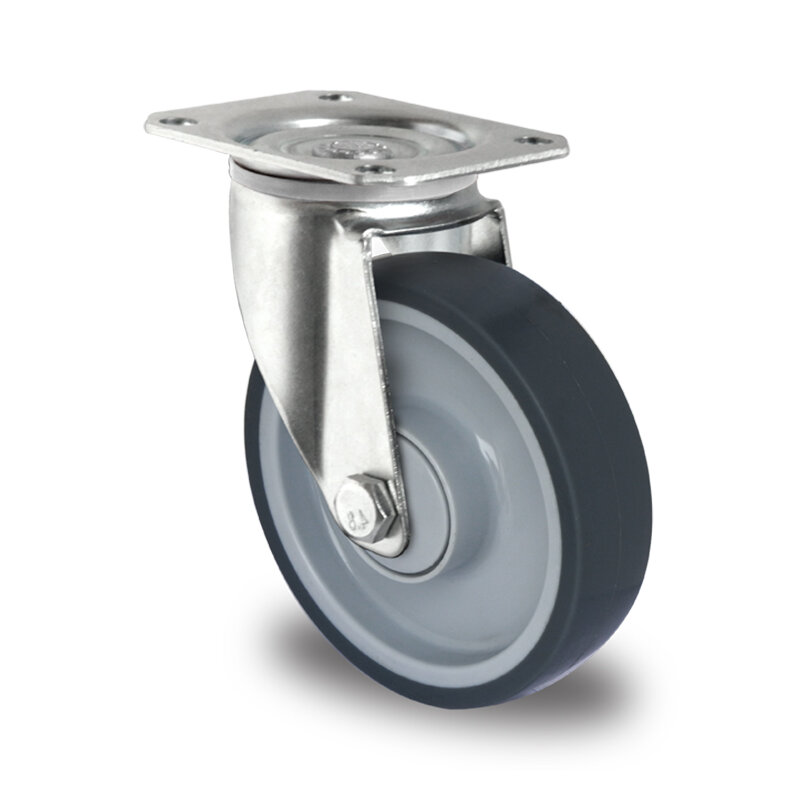

swivel castor, ° 200 mm

system number: SPP58WC200P2V2D32
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (85 ░ Shore A) grey colored, hub width 59 mm, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
quietly
temperature range from -20C░ to +60C░

Technical specifications

payload
200 Kg
wheel diameter
200 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
235 mm
Wheel width
50 mm
bearing surface
thermoplastic rubber 85░ Shore A grey
Wheel center
polypropylene grey
hub width
59 mm
bearing
double ball bearing
Axle screw
12 mm
