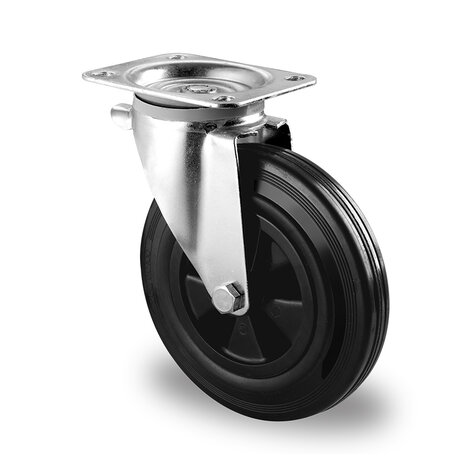

swivel castor, ° 200 mm

system number: SPP58WC200P4S4R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of polypropylene with a tread made of solid rubber (REACH-conform) black colored, hub width 59 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
quietly
low roll resistance
temperature range from -20C░ to +60C░

Technical specifications

payload
205 Kg
wheel diameter
200 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
235 mm
Wheel width
50 mm
bearing surface
solid black rubber 85░ Shore A
Wheel center
polypropylene black
hub width
59 mm
bearing
roller bearing
Axle screw
12 mm
