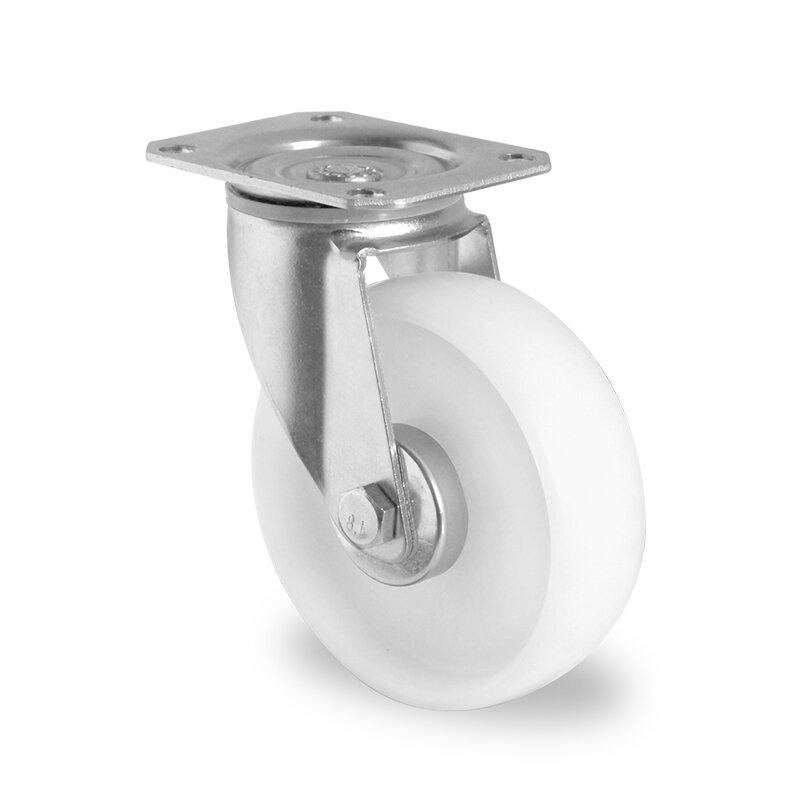

swivel castor, ø 200 mm

system number: SPP58WC200N0N0R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of nylon with a tread made of nylon white colored, hub width 59 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -40C° to +80C°

Technical specifications

payload
300 Kg
wheel diameter
200 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
235 mm
Wheel width
50 mm
bearing surface
polyamide white
Wheel center
polyamide white
hub width
59 mm
bearing
roller bearing
Axle screw
12 mm
