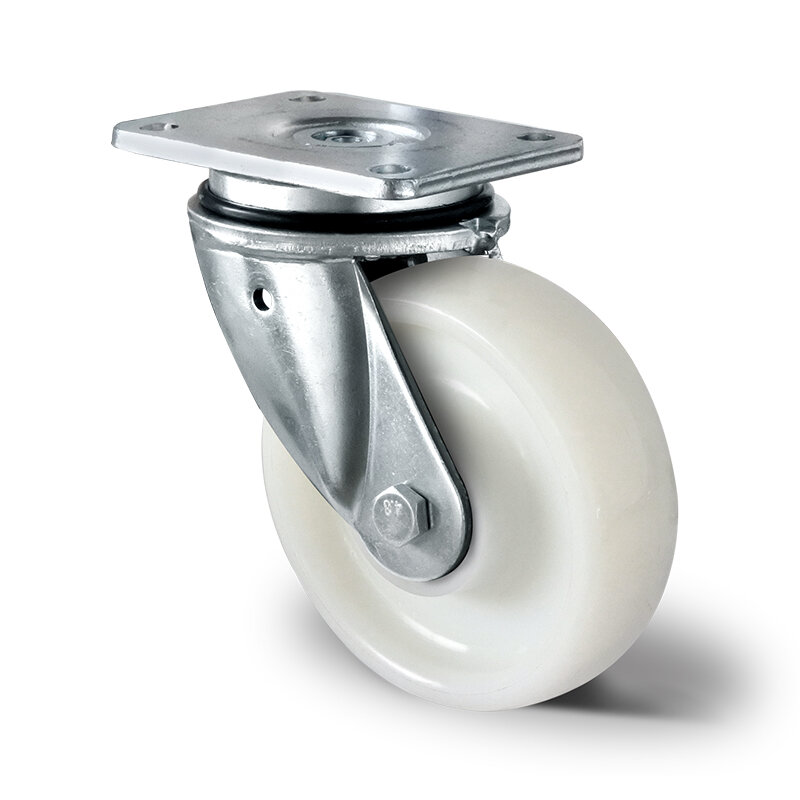

swivel castor, ° 200 mm

system number: SHP5MWC200Z0Z0D0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 8.0 mm (fitting) and 6.0 mm (fork), clearance between the fork 60 mm, wheel rim made of nylon with a tread made of robust nylon PA6 white colored, hub width 59 mm, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,high resistance to liquids
low start resistance
low roll resistance
high load capacity
temperature range from -40C░ to +80C░

Technical specifications

payload
1000 Kg
wheel diameter
200 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
245 mm
Wheel width
50 mm
bearing surface
polyamide white PA 6
Wheel center
polyamide white PA 6
hub width
60 mm
bearing
double ball bearing
Axle screw
12 mm
