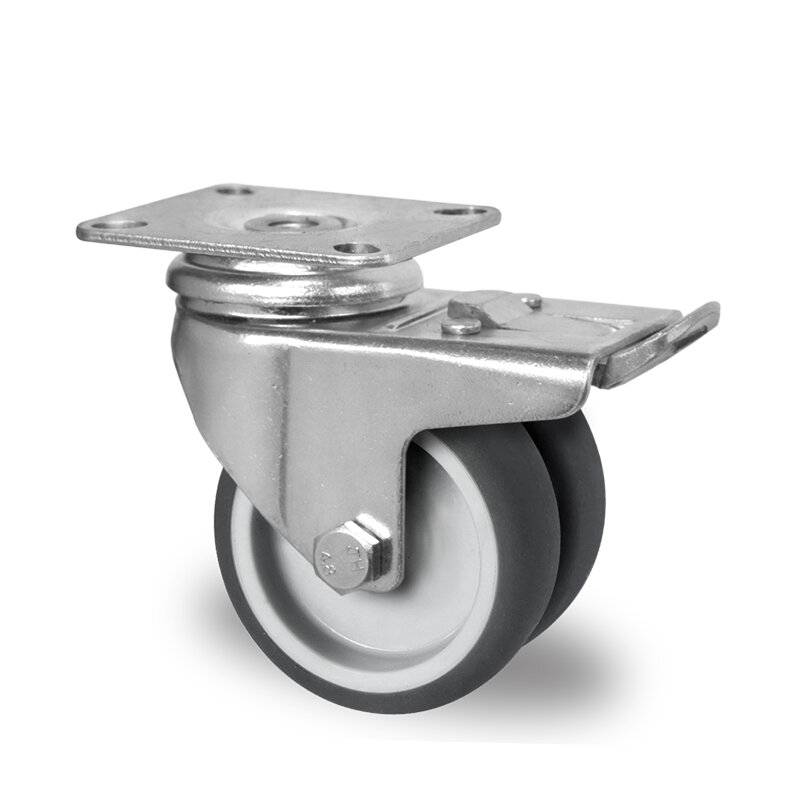

swivel castor, ° 50 mm with total brake

system number: TDPE6CC050P2T2P0N
  • galvanized and blue passivated sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 61.5/56 x 51.5/46.5 mm, housing with material strength 2.5 mm (fitting) and 2.0 mm (fork), clearance between the fork 36 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (95 ░ Shore A) grey colored, plain bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C░ to +60C░

Technical specifications

payload
70 Kg
wheel diameter
50 mm
fastening
plate 60 x 60 mm
hole pattern
48/38 x 48/38 mm
total height
72 mm
Wheel width
19 mm
bearing surface
thermoplastic rubber 95░ Shore A grey
Wheel center
polypropylene grey
hub width
44 mm
bearing
plain bearing
Axle screw
6 mm
