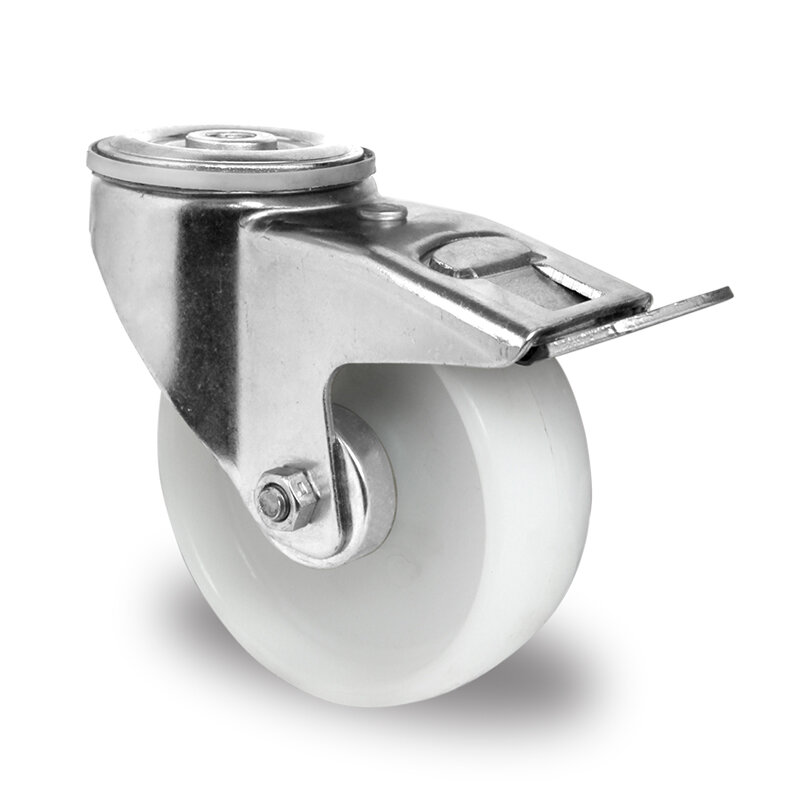

swivel castor with bolt hole and total brake, ø 108 mm

system number: BBH35WC108P0P0R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of polypropylene with a tread made of polypropylene white colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
low-priced alternative
temperature range from -20C° to +60C°

Technical specifications

payload
100 Kg
wheel diameter
108 mm
fastening
hole fitting 13 mm
total height
131 mm
Wheel width
36 mm
bearing surface
polypropylene white
Wheel center
polypropylene white
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
