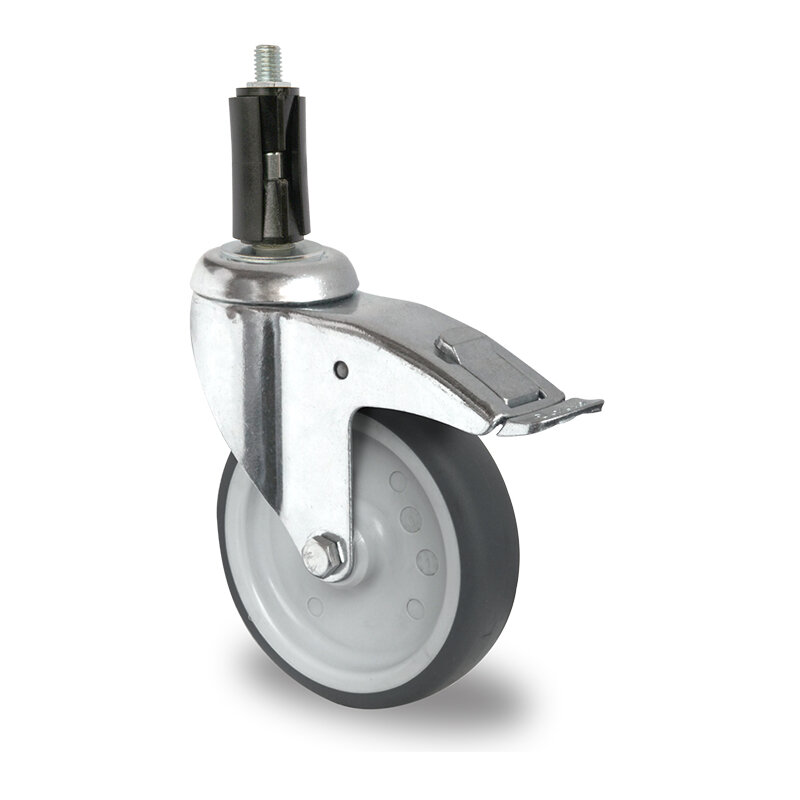

swivel castor with bolt hole and total brake, 125 mm

system number: BAX15CC125P2T2P0N
  • galvanized and blue passivated sheet steel housing, pivot bearing with a double ball race, fixing by screw 11 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork),wheel rim made of polypropylene with a tread made of thermoplastic rubber (95 Shore A) grey colored, hub width 36 mm, plain bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C to +60C

Technical specifications

payload
100 Kg
wheel diameter
125 mm
fastening
hole fitting 11 mm
total height
160 mm
Wheel width
32 mm
bearing surface
thermoplastic rubber 95 Shore A grey
Wheel center
polypropylene grey
hub width
36 mm
bearing
plain bearing
Axle screw
8 mm
