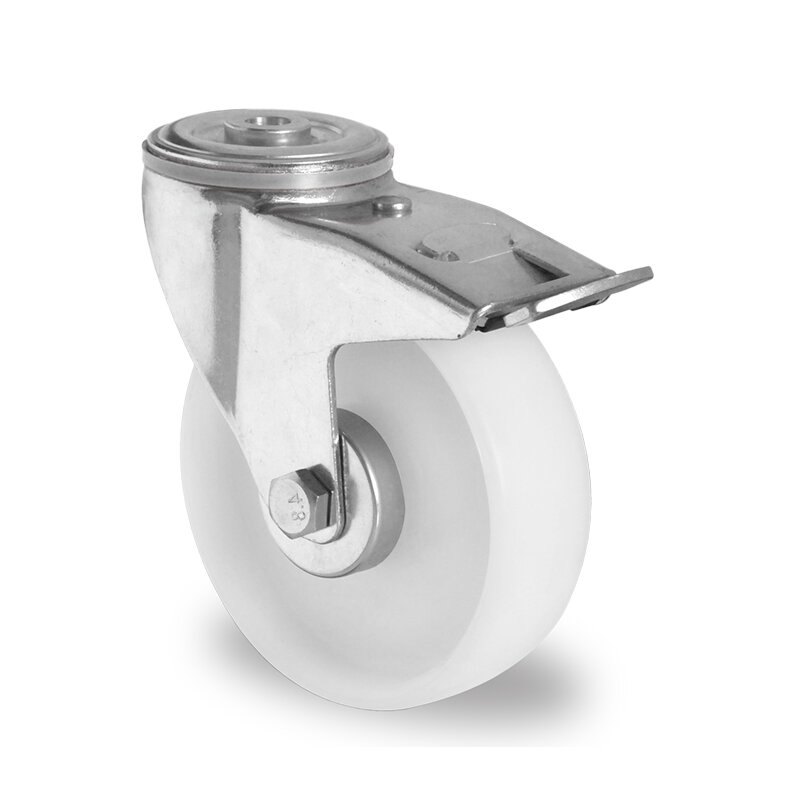

swivel castor with bolt hole and total brake, ø 160 mm

system number: BPH98WC160P0P0R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of polypropylene with a tread made of polypropylene white colored, hub width 59 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
low-priced alternative
temperature range from -20C° to +60C°

Technical specifications

payload
200 Kg
wheel diameter
160 mm
fastening
hole fitting 13 mm
total height
189 mm
Wheel width
50 mm
bearing surface
polypropylene white
Wheel center
polypropylene white
hub width
59 mm
bearing
roller bearing
Axle screw
12 mm
