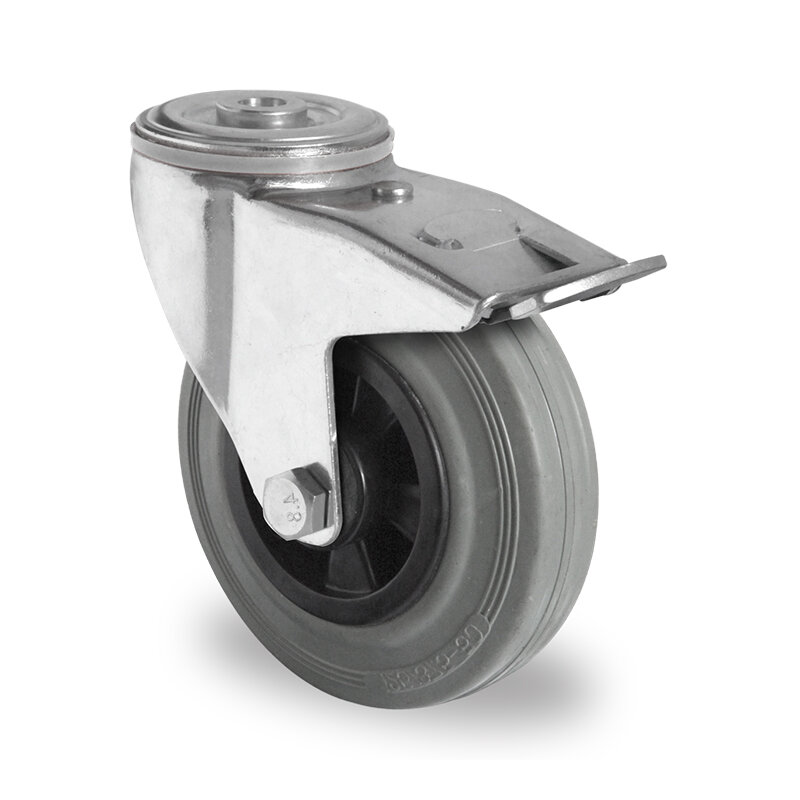

swivel castor with bolt hole and total brake, 160 mm

system number: BPH98WC160P4R2R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole 13 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of polypropylene with a tread made of solid rubber (PAH Cat.3) grey colored, hub width 59 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
low roll resistance
temperature range from -20C to +60C

Technical specifications

135 Kg
wheel diameter
160 mm
hole fitting 13 mm
total height
189 mm
Wheel width
40 mm
bearing surface
solid grey rubber 85 Shore A
Wheel center
polypropylene black
hub width
59 mm
roller bearing
Axle screw
12 mm
