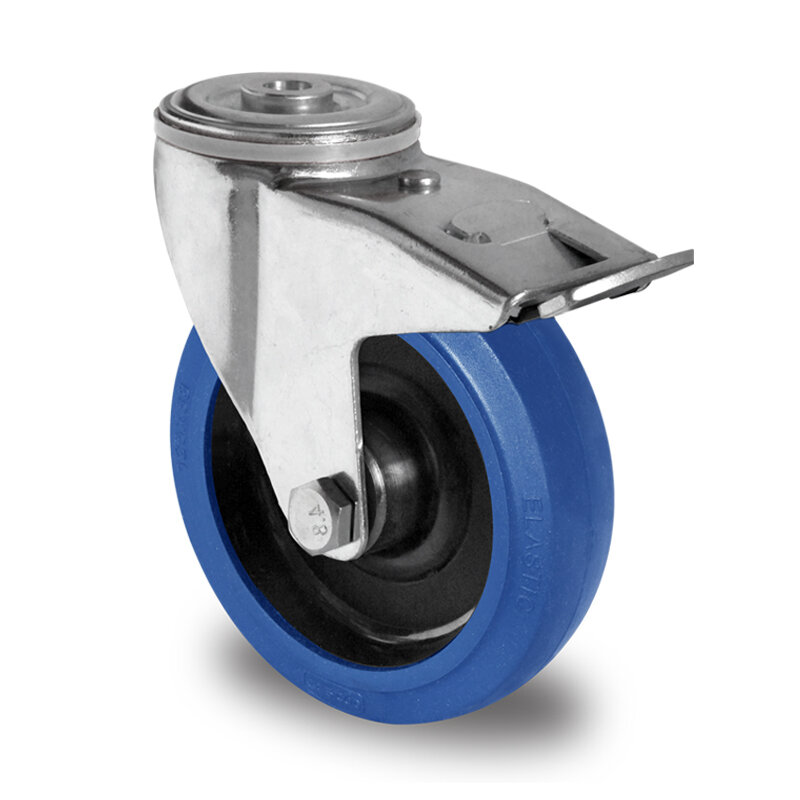

swivel castor with bolt hole and total brake, 200 mm

system number: BPH98WC200R4E1D0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole 13 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 65 Shore A) blue colored, hub width 59 mm, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C to +80C

Technical specifications

250 Kg
wheel diameter
200 mm
hole fitting 13 mm
total height
228 mm
Wheel width
46 mm
bearing surface
high quality blue elastic 65 Shore A
Wheel center
polyamide black
hub width
59 mm
double ball bearing
Axle screw
12 mm
