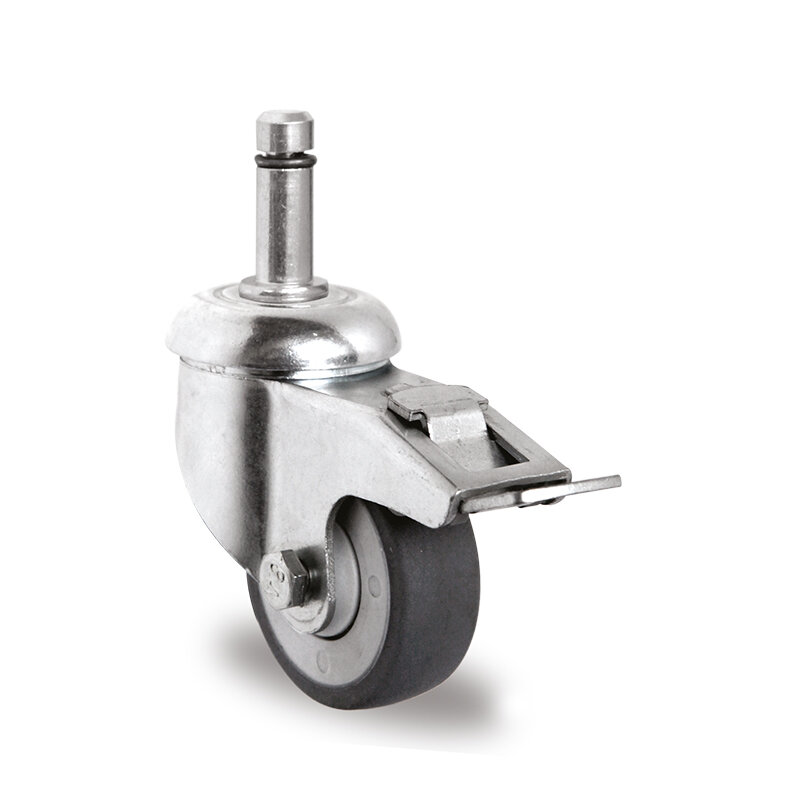

swivel castor with bolt hole and total brake, 50 mm

system number: BAZ19CC050P2T2B42
  • galvanized and blue passivated sheet steel housing, pivot bearing with a double ball race, bolt hole fitting incl. riveted stem by bolt hole 11 mm, housing with material strength 2.0 mm (fitting) and 1.8 mm (fork),wheel rim made of polypropylene with a tread made of thermoplastic rubber (95 Shore A) grey colored, hub width 22 mm, central ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C to +60C

Technical specifications

payload
50 Kg
wheel diameter
50 mm
fastening
hole fitting 11 mm
total height
70 mm
Wheel width
19 mm
bearing surface
thermoplastic rubber 95 Shore A grey
Wheel center
polypropylene grey
hub width
22 mm
bearing
ball bearing
Axle screw
6 mm
