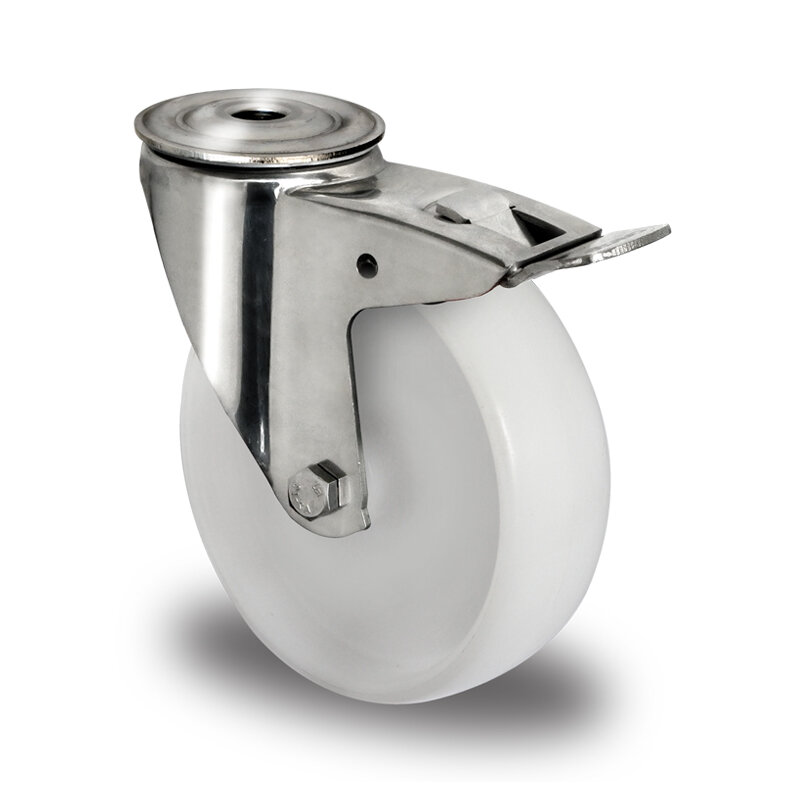

swivel castor with bolt hole and total brake, ° 80 mm

system number: BBH35WC080P2W2R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole ě 13 mm, housing with material strength 2.5 mm (fitting) and 2.0 mm (fork), clearance between the fork 42 mm, wheel rim made of polypropylene with a tread made of thermoplastic rubber (85 ░ Shore A) grey colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
versatile
temperature range from -20C░ to +60C░

Technical specifications

payload
80 Kg
wheel diameter
80 mm
fastening
hole fitting 13 mm
total height
104 mm
Wheel width
30 mm
bearing surface
thermoplastic rubber 85░ Shore A grey
Wheel center
polypropylene grey
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
