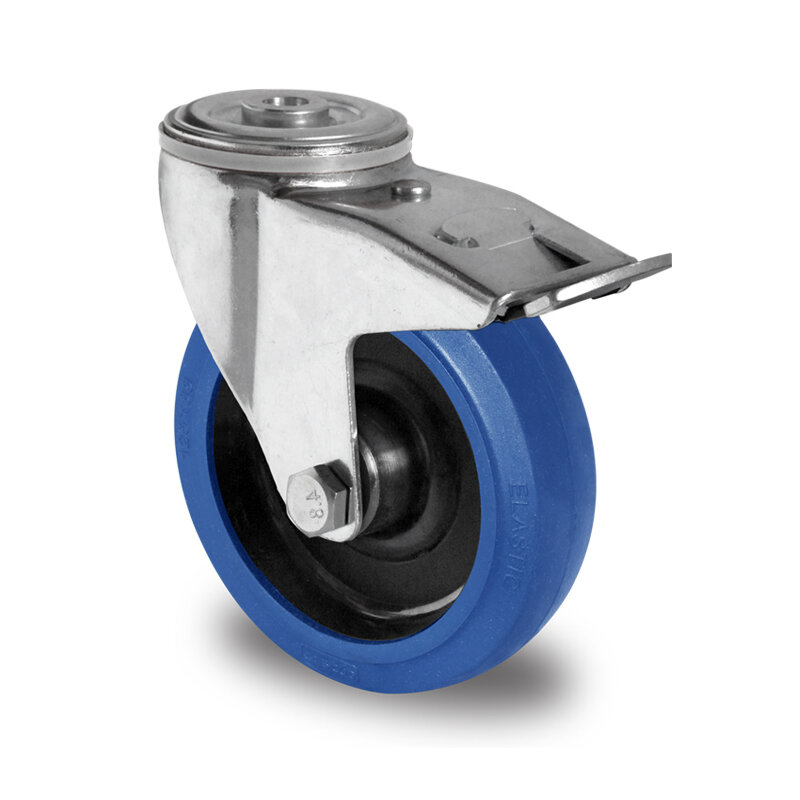

swivel castor with bolt hole and total brake, ø 80 mm

system number: BBH35WC080R4F1R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 75° Shore A) blue colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C° to +80C°

Technical specifications

payload
130 Kg
wheel diameter
80 mm
fastening
hole fitting 13 mm
total height
104 mm
Wheel width
35 mm
bearing surface
high quality blue elastic 75° Shore A
Wheel center
polyamide black
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
