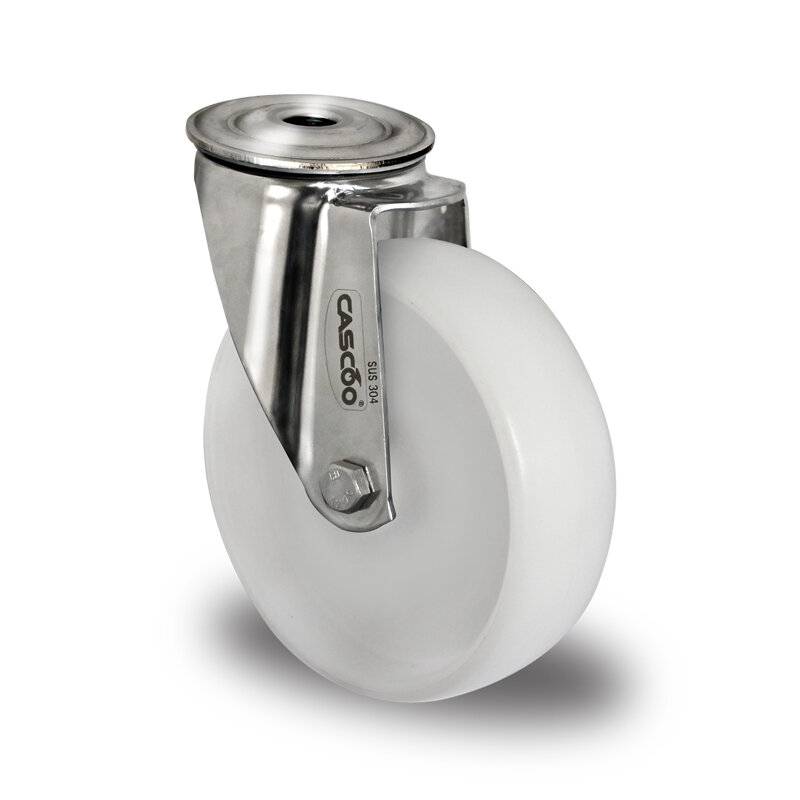

swivel castor with bolt hole, ø 100 mm

system number: HIH36SC100N0N0L0N
  • stainless steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.0 mm (fork), clearance between the fork 42 mm, wheel rim made of polyamide with a tread made of polyamide white colored, hub width 40 mm, plain bearing in stainless steel, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -40C° to +80C°

Technical specifications

payload
150 Kg
wheel diameter
100 mm
total height
127 mm
Wheel width
36 mm
bearing surface
polyamide white
Wheel center
polyamide white
hub width
40 mm
bearing
plain bearing in stainless steel
Axle screw
8 mm
