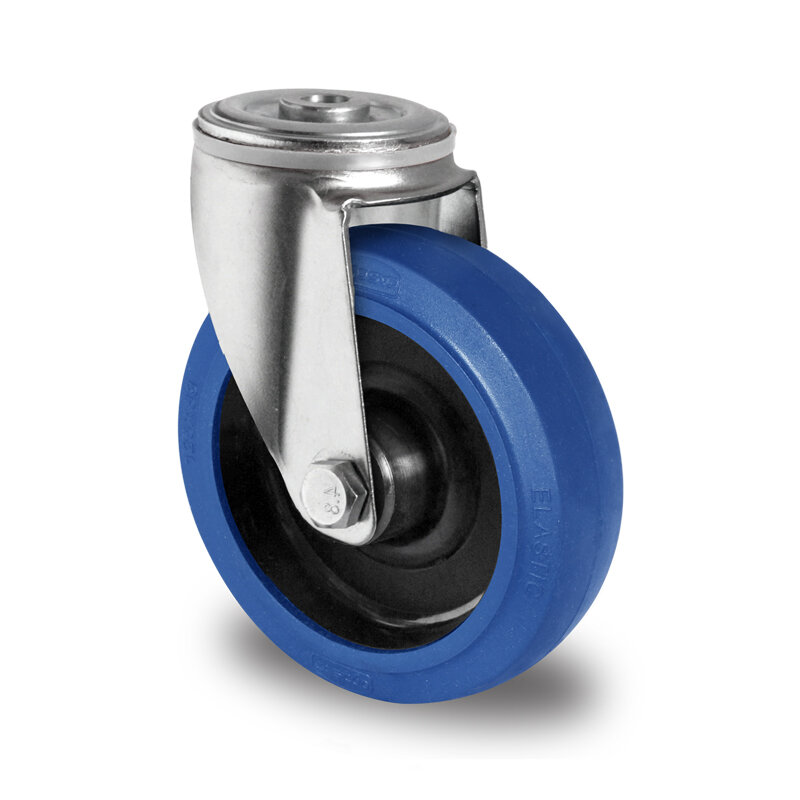

swivel castor with bolt hole, ø 125 mm

system number: HBH85WC125R4F1R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 52 mm, wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 75° Shore A) blue colored, hub width 50 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C° to +80C°

Technical specifications

payload
150 Kg
wheel diameter
125 mm
fastening
hole fitting 13 mm
total height
154 mm
Wheel width
38 mm
bearing surface
high quality blue elastic 75° Shore A
Wheel center
polyamide black
hub width
50 mm
bearing
roller bearing
Axle screw
10 mm
