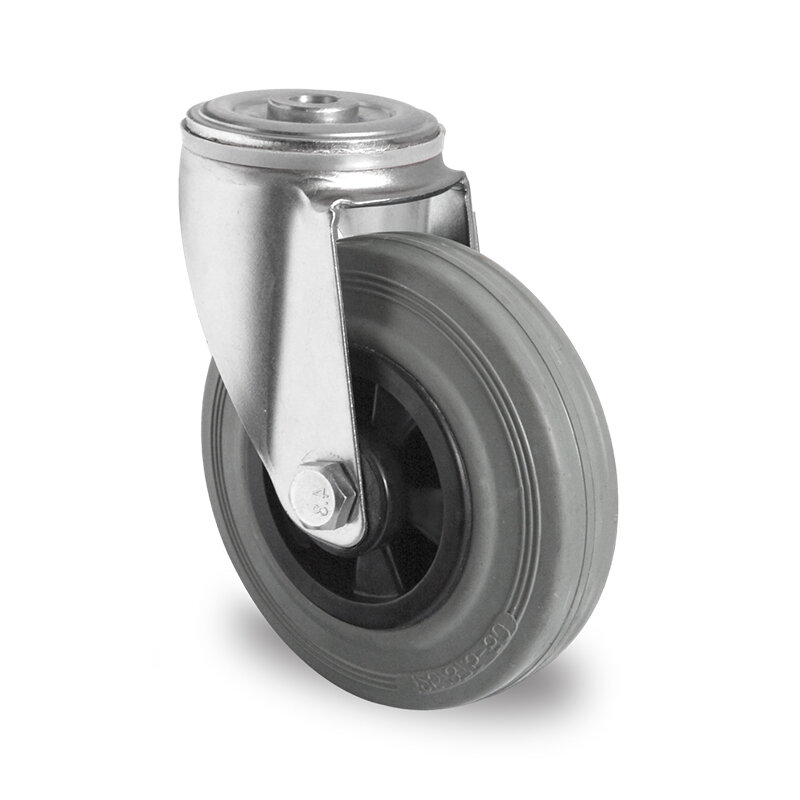

swivel castor with bolt hole, 125 mm

system number: HBH85WC125P4R2R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 52 mm, wheel rim made of polypropylene with a tread made of solid rubber (PAH Cat.3) grey colored, hub width 50 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
quietly
low roll resistance
temperature range from -20C to +60C

Technical specifications

payload
100 Kg
wheel diameter
125 mm
fastening
hole fitting 13 mm
total height
154 mm
Wheel width
38 mm
bearing surface
solid grey rubber 85 Shore A
Wheel center
polypropylene black
hub width
50 mm
bearing
roller bearing
Axle screw
10 mm
