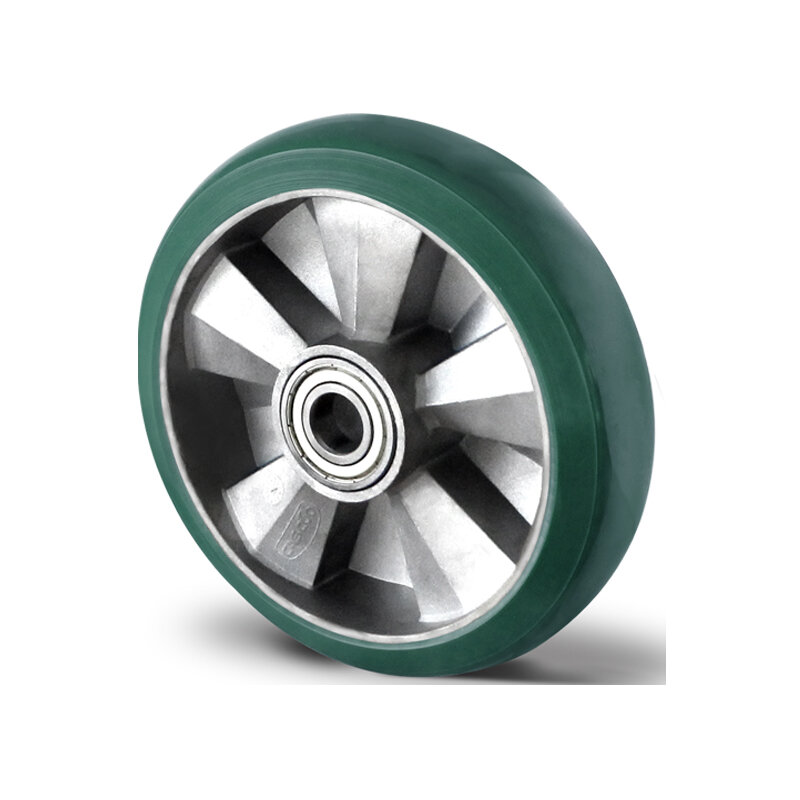

wheel only, ø 160 mm

system number: 160BAX7D0N
  • wheel rim made of aluminium with a tread made of robust PUlastic 75° Shore A green colored, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C° to +60C°

Technical specifications

payload
600 Kg
wheel diameter
160 mm
Wheel width
50 mm
bearing surface
PUlastic green 75° Shore A
Wheel center
aluminium
hub width
60 mm
bearing
double ball bearing
Axle screw
12 mm
