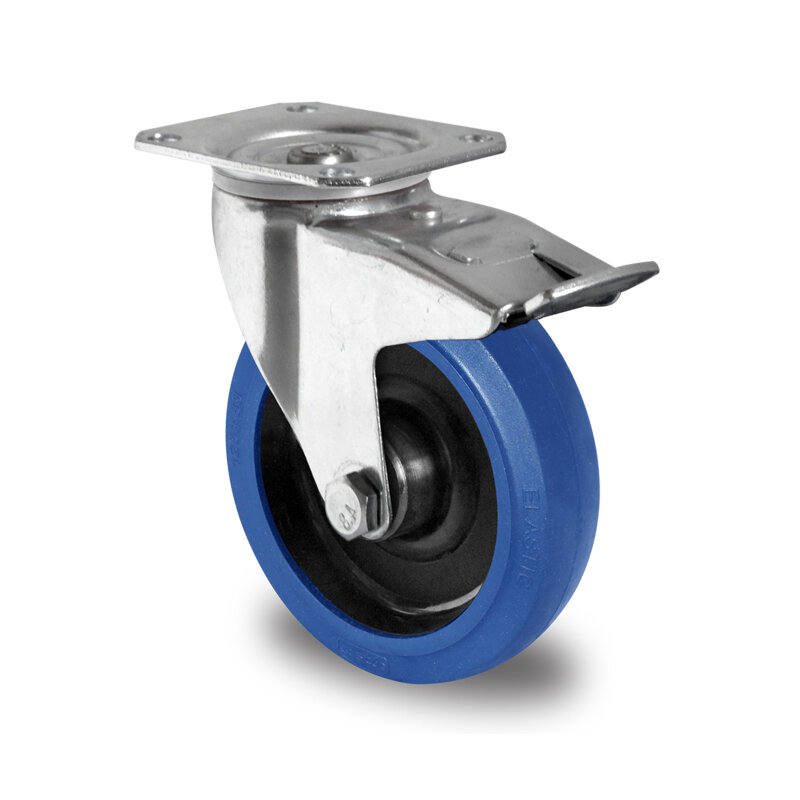

swivel castor, ø 160 mm with total brake

system number: TPP58WC160R4E1D0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 105 x 84/76 mm, housing with material strength 3.5 mm (fitting) and 3.0 mm (fork), clearance between the fork 60 mm, wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 65° Shore A) blue colored, hub width 59 mm, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
quietly
temperature range from -20C° to +80C°

Technical specifications

payload
300 Kg
wheel diameter
160 mm
fastening
plate 135 x 110 mm
hole pattern
105 x 84/76 mm
total height
195 mm
Wheel width
46 mm
bearing surface
high quality blue elastic 65° Shore A
Wheel center
polyamide black
hub width
59 mm
bearing
double ball bearing
Axle screw
12 mm
