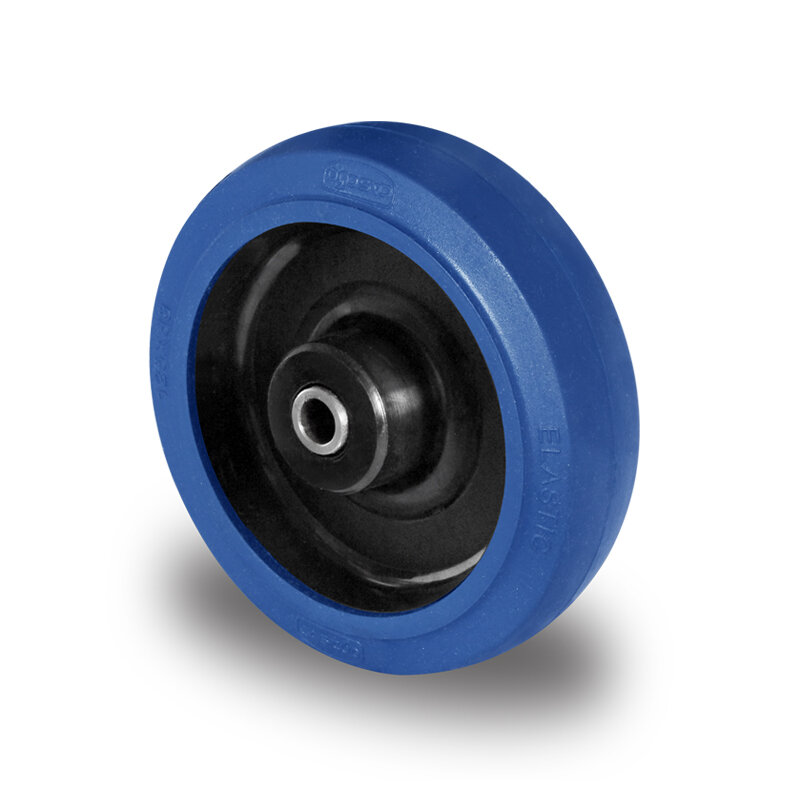

wheel only, ° 160 mm

system number: 160R4E1D0N
  • wheel rim made of nylon with a tread made of vulcanized elastic tyre (approx. 65░ Shore A) blue colored, double ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -20C░ to +80C░

Technical specifications

payload
300 Kg
wheel diameter
160 mm
Wheel width
46 mm
bearing surface
high quality blue elastic 65░ Shore A
Wheel center
polyamide black
hub width
59 mm
bearing
double ball bearing
Axle screw
12 mm
